Mastering AWS EventBridge

In the world of modern cloud applications, event-driven architectures have become increasingly essential. They enable decoupled, scalable, and responsive systems. At the heart of Amazon Web Services’ (AWS) event-driven solutions lies Amazon EventBridge, a serverless event bus service designed to connect applications using events.

In this article, we’ll explore what AWS EventBridge is, how it works, and how to implement it with a practical example.

What is AWS EventBridge?

Amazon EventBridge is a serverless event bus service that simplifies the process of building event-driven applications by ingesting, routing, and delivering events between AWS services, custom applications, and third-party SaaS applications.

Key Features of EventBridge:

1. Decoupling: Producers and consumers of events don’t need to be aware of each other’s existence.
2. Event Filtering: EventBridge allows fine-grained filtering so that only specific events are routed to specific targets.
3. Schema Registry: Automatically discovers and validates event schemas, helping developers integrate seamlessly.
4. Multi-account Event Bus: EventBridge supports cross-account event sharing, enabling centralized event management.
5. Serverless: No infrastructure management; AWS scales the service based on demand.

EventBridge expands on the functionality of Amazon CloudWatch Events by adding support for SaaS integrations and a schema registry.

Core Components of AWS EventBridge

Event Source: Where events originate (e.g., AWS services like S3, Lambda, third-party SaaS apps, or custom applications).

Event Bus: A pipeline that routes events from sources to targets. AWS provides:

• Default Event Bus: Captures AWS service events.
• Custom Event Bus: Used for custom events.
• Partner Event Bus: Integrates with third-party SaaS applications.

Event Rules: Define how and where events should be routed. Rules can include filtering logic.

Targets: Destinations for events, such as Lambda functions, SQS queues, Step Functions, Kinesis streams, or even HTTP endpoints.

How AWS EventBridge Works

At a high level, EventBridge operates as follows:

1. Event Emission: Events are emitted by sources (e.g., an S3 bucket triggers an object-created event).
2. Rule Evaluation: Rules evaluate events against predefined patterns.
3. Event Routing: Matched events are routed to configured targets.
4. Event Processing: Targets process the event for further actions.

The decoupled nature of EventBridge makes it a cornerstone for building resilient, modular applications.

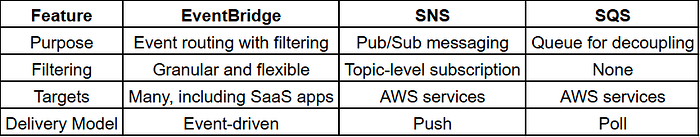

AWS EventBridge vs SNS vs SQS

Hands-On Example: Using AWS EventBridge with Lambda

Let’s walk through an example where an S3 bucket event triggers a Lambda function via EventBridge.

Step 1: Prerequisites

Ensure you have the following:

• An AWS account
• An S3 bucket
• AWS CLI installed and configured

Step 2: Create an EventBridge Rule

1. Log in to AWS Management Console.
2. Navigate to EventBridge > Rules and click Create rule.
3. Name the rule (e.g., S3FileUploadTrigger).
4. Choose the Default event bus.
5. Select Event source as “AWS services.”
6. Under Service provider, select S3.
7. Define the Event pattern:

{
    "source": ["aws.s3"],
    "detail-type": ["Object Created"],
    "detail": {
        "bucket": {
            "name": ["your-s3-bucket-name"]
        }
    }
}

Click Next.

Step 3: Create a Lambda Function

Create a Lambda function that processes the S3 event. For simplicity, the function logs the event details.

Code for Lambda Function:

import json

def lambda_handler(event, context):
    print("Event received:", json.dumps(event))
    return {
        'statusCode': 200,
        'body': json.dumps('Event processed successfully!')
    }

1. Deploy the function to AWS Lambda.
2. Note the ARN of the Lambda function.

Step 4: Add the Lambda Target to the Rule

1. In the EventBridge rule creation wizard, choose Add target.
2. Select AWS Service > Lambda Function.
3. Choose the Lambda function created earlier.
4. Click Next, review the settings, and click Create rule.

Step 5: Test the Event Flow

1. Upload a file to the S3 bucket.
2. Check the CloudWatch logs for the Lambda function to confirm the event was received and processed.

Advanced Use Case: Multi-Account Event Processing

Imagine you have multiple AWS accounts where events from different sources need to be processed centrally. EventBridge supports event sharing across accounts using a custom event bus.

Here’s how it works:

1. Producer Account: Sends events to a shared event bus in the consumer account.
2. Consumer Account: Processes the events using custom rules.

Key Benefit: Centralized event management for better visibility and scalability.

When to Use AWS EventBridge

• Integration with SaaS Applications: EventBridge integrates with services like Zendesk, Datadog, and others.
• Serverless Applications: Simplifies orchestration without requiring infrastructure management.
• Fine-Grained Event Filtering: Enables routing of specific events to the right target.
• Multi-Account Environments: Ideal for centralized event management.

Conclusion

AWS EventBridge is a powerful tool for building event-driven architectures. Its serverless nature, fine-grained filtering, and broad integration options make it an excellent choice for modern cloud-native applications. By using EventBridge, you can simplify communication between services, increase scalability, and reduce operational complexity.

The example above illustrates how to set up a simple event-driven flow using S3 and Lambda, but the possibilities are limitless. From automating workflows to building complex event-driven systems, AWS EventBridge unlocks new opportunities for innovation.
